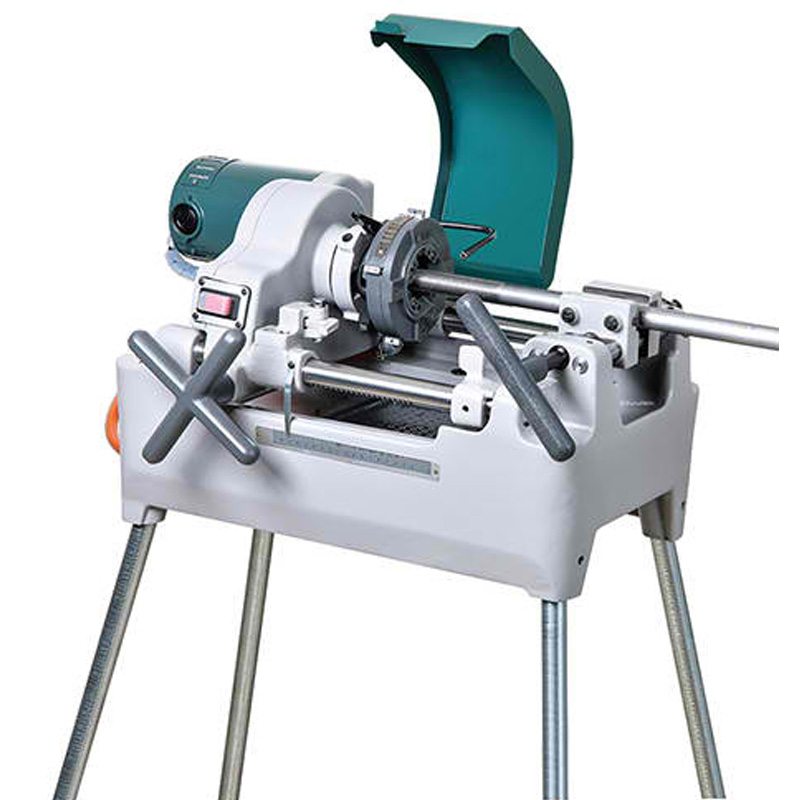

Asada BTM25 Rod/Bolt Electric Threading Machine
Roll over image to zoom in
Was$5,919.00 Excl. GST$6,510.90 Incl. GSTNow Only
$5,747.00 excl. GST$6,321.70 incl. GST
- Speed bolt threads up to 24mm
- Proven Japanese Design & Technology
- Beaver – Designed for airtight threading
- Perfect for Job sites Construction sites for anchor bolts, turn-buckles, stud bolts and suspension bolts

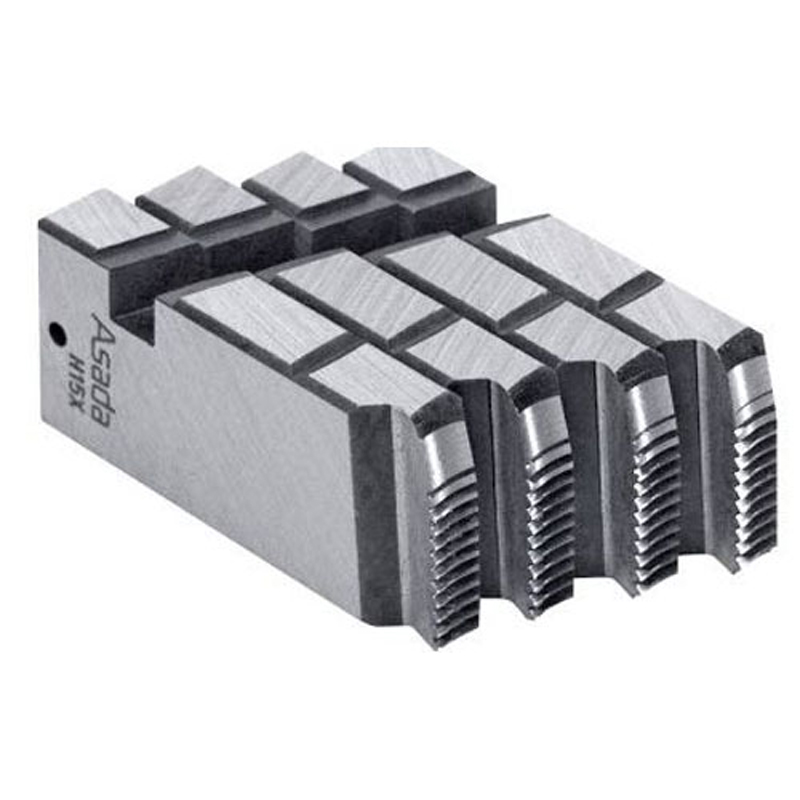

- Threading dies included with the machine
– 1.75mm Pitch for M12 bar threading
– 2.0mm Pitch for M14 – M16 bar threading
– Others thread sizes / pitches available
Asada Model BTM25 Rod/Bolt Electric Threading Machine Product Demo
Product Information
- 8-24mm capacity
- Dedicatedmachine designed specifically for threading bolt and rod
- Faster spindle speed than Pipe Threading Machines
- Heavy duty machine
- Spindle speed 80rpm
- Rod is held in vice to allow threading of long lengths or bent material
- Compact and light for easy installation and transportation
- Machine is for right hand threading only (A separate machine for left hand threading only is available on request)
- Designed for easy maintenance
- Large volume oil tank for efficient cooling and threading lubrication
- Automatic Dies opening and lubrication oil system
- 1.5hp 240V motor with overload protection
|
Model |
Standard Threading Capacity |
Motor |
Spindle Speed |
|
BTM25 |
8mm-24mm |
1 Phase 1140 W (1.5HP) |
80rpm (no load) |
Note:
Threading dies included with the machine
- 1.75mm Pitch for M12 bar threading
- 2.0mm Pitch for M14 – M16 bar threading
- Others thread sizes / pitches available
| Bolt Diameter (mm) | Thread Pitch (mm) | |||
|---|---|---|---|---|
| Standard | Fine | Extra or Super Fine | JIS | |
| 2 | .4 | – | – | .4 |
| 2.5 | .45 | – | – | .45 |
| 3 | .5 | – | – | .5 |
| 4 | .7 | – | – | .7 |
| 5 | .8 | – | – | .8 |
| 6 | 1.0 | – | – | 1.0 |
| 7 | 1.0 | – | – | 1.0 |
| 8 | 1.25 | 1 | – | 1.25 |
| 10 | 1.5 | 1.25 | 1 | 1.25 |
| 12 | 1.75 | 1.5 | 1.25 | 1.25 |
| 14 | 2 | 1.5 | – | 1.5 |
| 16 | 2 | – | – | 1.5 |
| 18 | 2.5 | – | – | 1.5 |
| 20 | 2.5 | – | – | 1.5 |
- threading head
- rod threader
- pipe threader
- threading machine
- galvanised pipe threader
- bolt threading
- face threading machine
- threader machine for sale
- pipe threader for sale
- pipe threader kit
- electric automatic threading machine
- bolt threading machine
- pipe threading tools
- electric pipe threader
- asada threading machine
- steel pipe threader
- pipe threading dies
- beaver threading machine
- roll threading machine
- pipe threading machines
- ridgid pipe threader
- galvanized pipe threader
- black pipe threader
- hand pipe threader
- gas pipe threader
- portable pipe threader
- hand held pipe threader
- iron pipe threader
- portable threading machine
- portable power threader
- ridgid pipe threading machine
- pipe threading
- beaver machine
- beaver equipment
- asada
Additional information
| Weight | 62 kg |
|---|---|
| Dimensions | 68 × 54 × 48 cm |
